Microstrategy Reading Change Journal
07 Jan 2026
Difficulty ★★★☆☆
So a question came up: can we check how many changes a user has made in the current year?
I decided to investigate further and came to conclusion to use Change Journal.
Sources that were used are
DSSMDJRNOBJD - object was deleted
DSSMDJRNOBJC - object was changed
DSSMDJRNOBJS - change type
DSSMDJRNINFO - object info (if it’s not deleted)
with Transaction_type as
(
SELECT *,
case Transaction_type
when 1 then 'Enable Change Journal'
when 2 then 'Disable Change Journal'
when 3 then 'Purge Change Journal'
when 4 then 'Save Object'
when 5 then 'Save Objects'
when 6 then 'Save Link Item'
when 7 then 'Delete Object'
when 8 then 'Delete Objects'
when 9 then 'Delete Project'
when 10 then 'Copy Object'
when 11 then 'Merge user'
when 12 then 'Collect Garbage'
when 13 then 'Write System Property'
when 14 then 'Write Database Password'
else 'unknown'
end Trans_desc
FROM DSSMDJRNINFO
)
, CHANGE_TYPE as
(
SELECT *,
case CHANGE_TYPE
when 1 then 'Create Object'
when 2 then 'Change Object'
when 3 then 'Delete Object'
when 4 then 'Touch Folder'
when 5 then 'Create Link Item'
when 6 then 'Change Link Item'
when 7 then 'Delete Link Item'
when 8 then 'Enable Change Journal'
when 9 then 'Disable Change Journal'
when 10 then 'Purge Change Journal'
else 'unknown'
end change_Desc
FROM DSSMDJRNOBJS
) , OBJECT_TYPE as
(
SELECT distinct o.object_type,
CASE o.object_type
WHEN 1 THEN 'filter'
WHEN 2 THEN 'template'
WHEN 3 THEN 'report'
WHEN 4 THEN 'metric'
WHEN 6 THEN 'autostyle'
WHEN 7 THEN 'fact'
WHEN 8 THEN 'folder'
WHEN 10 THEN 'prompt'
WHEN 11 THEN 'function'
WHEN 12 THEN 'attribute'
WHEN 13 THEN 'fact'
WHEN 14 THEN 'hierarchy'
WHEN 15 THEN 'table'
WHEN 17 THEN 'fact group'
WHEN 18 THEN 'shortcut'
WHEN 19 THEN 'prompt anser'
WHEN 21 THEN 'attribute id'
WHEN 22 THEN 'schema'
WHEN 24 THEN 'warehouse catalog'
WHEN 25 THEN 'warehouse catalog definition'
WHEN 26 THEN 'table column'
WHEN 28 THEN 'property sets'
WHEN 29 THEN 'DB Instance'
WHEN 30 THEN 'DB Login'
WHEN 31 THEN 'DB Description'
WHEN 33 THEN 'Server definition'
WHEN 34 THEN 'users/groups'
WHEN 39 THEN 'search'
WHEN 40 THEN 'search folder'
WHEN 42 THEN 'package'
WHEN 43 THEN 'Transformations'
WHEN 47 THEN 'consolidations'
WHEN 52 THEN 'link'
WHEN 53 THEN 'table'
WHEN 55 THEN 'Document'
WHEN 56 THEN 'drill map'
WHEN 58 THEN 'security filter'
ELSE 'OTHERS' /*https://community.microstrategy.com/s/article/KB16048-List-of-all-object-types-and-object-descriptions-in?language=en_US*/
END
AS tipo
FROM dssmdobjinfo o
)
select d.OBJECT_NAME as Project
, coalesce(created.object_name,Deleted.OBJECT_NAME,NameOfChangedAndDeletedObject.OBJECT_NAME) as Objekt
, coalesce(Deleted.OBJECT_TYPE,created.OBJECT_TYPE,NameOfChangedAndDeletedObject.OBJECT_TYPE) as ObjectTypeId
, coalesce(Deleted_object_type.tipo,Created_object_type.tipo,ChangedAndDeleted_object_type.tipo) as ObjectType
--, a.Transaction_type
, a.trans_Desc as Trans_Desc
, a.TRANSACTION_TIMESTAMP as Transaction_Timestamp
--, a.USER_ID
, u.OBJECT_NAME as User_Name
, a.MACHINE as AccesFrom
, Changed.COMMENT_VAL as Change_notification
, iif( deleted.OBJECT_NAME is not null,1,0) as Count_Deletes
, iif( Changed.TRANSACTION_ID is not null,1,0) as Count_Changes
, iif( c.CHANGE_TYPE = 1 ,1,0) as Count_Created
, iif( a.Transaction_type = 5 ,1,0) as Count_Saved
--, Deleted.OBJECT_NAME as NameOfDeletedObject
--, created.object_name as NameOfChangedObject
--, NameOfChangedAndDeletedObject.object_name as NameOfChangedAndDeletedObject
--, Deleted.OBJECT_ID as deleted_id
--, Changed.OBJECT_ID as changed_id
--, created.OBJECT_ID as created_id
from Transaction_type AS a --transactions
left join DSSMDJRNOBJD AS Deleted --deleted (base)
on a.TRANSACTION_ID = Deleted.TRANSACTION_ID
left join CHANGE_TYPE AS c --created (base)
on a.TRANSACTION_ID = c.TRANSACTION_ID
left join DSSMDOBJINFO AS d --project name
on c.project_id = d.OBJECT_ID
LEFT JOIN DSSMDOBJINFO AS u --user
ON a.USER_ID = u.OBJECT_ID
AND u.OBJECT_TYPE IN (8, 34)
LEFT JOIN OBJECT_TYPE AS Deleted_object_type --object type for deleted
on deleted.OBJECT_TYPE = Deleted_object_type.object_type
LEFT JOIN [dbo].[DSSMDJRNOBJC] AS Changed --changed (base)
on a.TRANSACTION_ID = Changed.TRANSACTION_ID
and a.TRANSACTION_PROJECT_ID = Changed.PROJECT_ID
LEFT JOIN DSSMDOBJINFO AS Created --details for creted
on c.OBJECT_ID = created.OBJECT_ID
and c.PROJECT_ID = created.PROJECT_ID
LEFT JOIN OBJECT_TYPE AS Created_object_type --object type for created
on created.OBJECT_TYPE = Created_object_type.object_type
LEFT JOIN DSSMDJRNOBJD AS NameOfChangedAndDeletedObject--changed and then deleted - Get Name from deleted since ID of object exist
on Changed.OBJECT_ID = NameOfChangedAndDeletedObject.OBJECT_ID
LEFT JOIN OBJECT_TYPE AS ChangedAndDeleted_object_type -- object type for changed that were deleted
on NameOfChangedAndDeletedObject.OBJECT_TYPE = ChangedAndDeleted_object_type.object_type
where
CHANGE_TYPE <> 4 /*if you save a report we dont need folder to be reported as something changing*/
--and d.OBJECT_NAME = 'Razvojno okolje Klemen' --filter project
--and year(a.TRANSACTION_TIMESTAMP) = 2025 --filter year
order by d.OBJECT_NAME, a.TRANSACTION_TIMESTAMP descNote: “Change” means the report name was changed.
TESTING
If you add a new report and don’t add notification it will show it as
if we chage the name of it shows as
if you just open it and save nothing changes
but if you let’s say add another atribute you get
and now when you delete it
We can see that something was created and saved, and we know what was changed and what was deleted. However, we can’t say it was the same object, since we can only see the transaction_id and not the object_id.

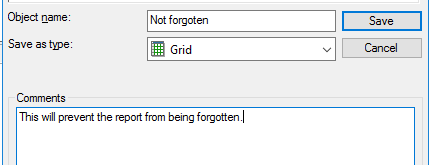

if we do the same just use comments this time
we get
even after it was deleted
Notes: The idea I got from microstrategy-change-journal
