MicroStrategy The Craziness that is Platform Analytics

20 Apr 2024

Dificulty ★★★★☆

This does not cover cluster setups.

If the folowing tutorial does not resolve your error prepare the folowing files for support


C:\Program Files (x86)\MicroStrategy\Intelligence Server\KFKProducerError.log
C:\Program Files (x86)\MicroStrategy\Platform Analytics\conf\PAConsumerConfig.yaml
C:\Program Files (x86)\MicroStrategy\Platform Analytics\log\platform-analytics-consumer.log
C:\Program Files (x86)\Common Files\MicroStrategy\Log\DssError.log
C:\Program Files (x86)\MicroStrategy\Messaging Services\Kafka\kafka_xxx\config	(whole folder)
C:\Program Files (x86)\MicroStrategy\Messaging Services\Kafka\kafka_xxx\logs	(whole folder)


in command manager run
LIST ALL PROPERTIES FOR SERVER CONFIGURATION;
find bootstrap.servers:
send screnshot

Connect to postgre sql
and run
select * from platform_analytics_wh.lu_broker_list;
select * from platform_analytics_wh.access_transactions order by tran_timestamp DESC limit 10; /*this shows if new data is loaded*/
send screshot or output

Info if this services are running
-Apache ZooKeeper (zookeeper)
-Apache Kafka (kafka)
-MicroStrategy Platform Analytics In-Memory Cache
-MicroStrategy Platform Analytics consumer

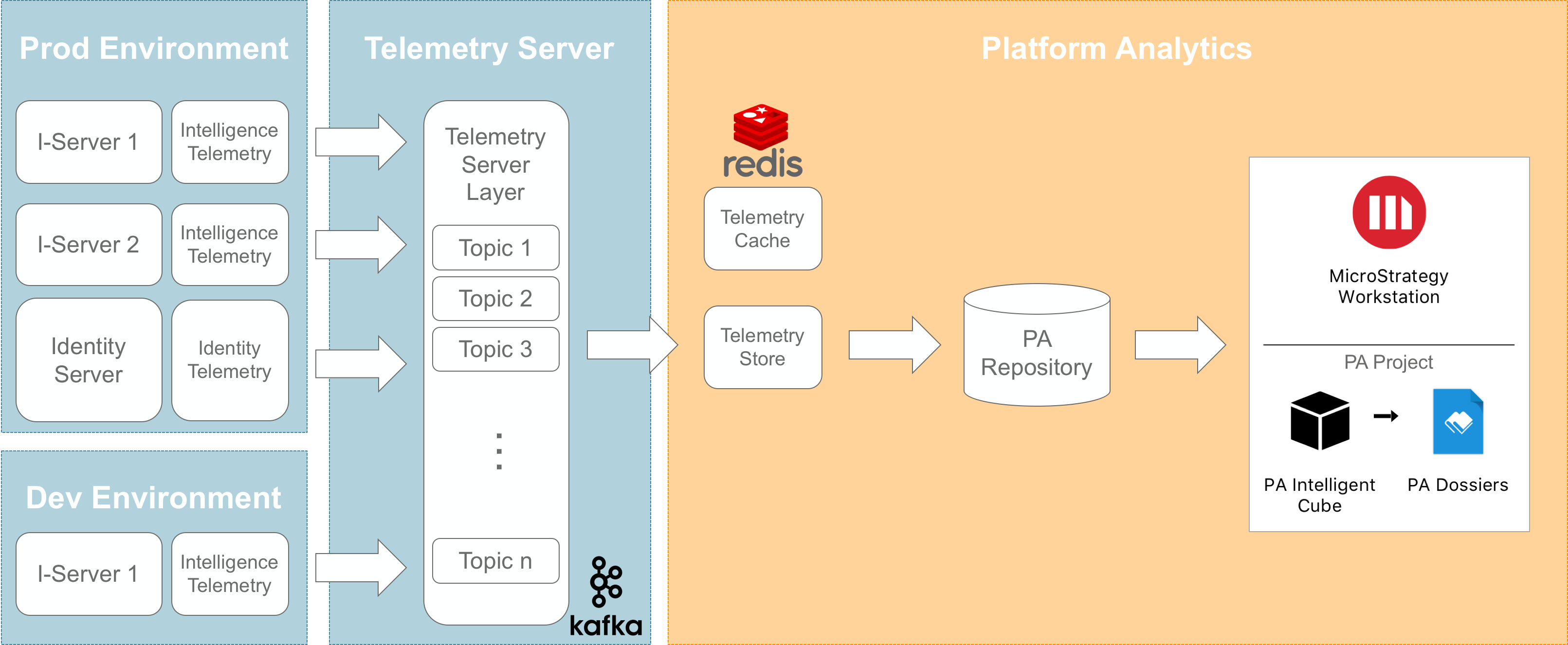

We can imagine data flow is like this
INTELIGENCE > KAFKA > PLATFORM > POSTGRE > Platform Analytics project
platform_analytics
pa_architecture_and_services

During error testing stop services in the folowing order
-MicroStrategy Platform Analytics consumer
-MicroStrategy Platform Analytics In-Memory Cache
-Apache Kafka (kafka)
-Apache ZooKeeper (zookeeper)

and run them like
-Apache ZooKeeper (zookeeper)
-Apache Kafka (kafka)
-MicroStrategy Platform Analytics In-Memory Cache
WAIT 10s
-MicroStrategy Platform Analytics consumer

POSTGRE > Platform Analytics project

Lets start from the end if data is not shown in ‘Platform Analytics project’ even after you republished cubes.
And there is data in POSTGRE if you run

 select * from platform_analytics_wh.access_transactions order by tran_timestamp DESC limit 10;

Then you have a problem with wrong ODBC

Chek ODBC Data Source Administration (64-bit) if you can connect to Postgre
Chek in ‘Microstrategy Developer/ Administration / Configuration Managers / Database Instances / Platform Analytics’ if connections are correct

Info password for Postgre shud be writen in
‘Start / Microstrategy Tools / Install Password File’ under ‘mstr_pa’
and default database name in ‘platform_analytics_wh’

Cube is too big

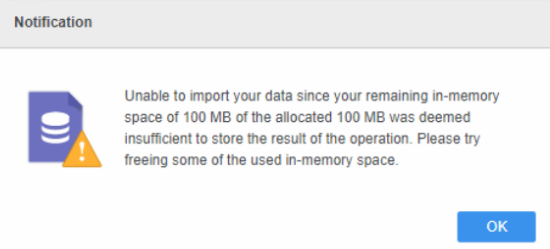

If you get error ‘Unable to import your data since your remaning in-memory space od 100 MB …‘
Cube

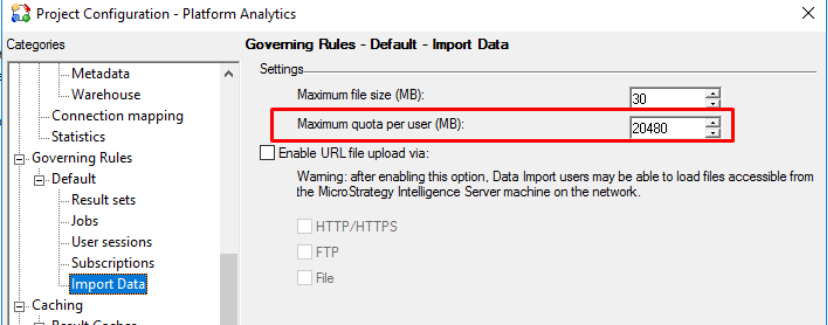

Change it to bigger number since default is 100MB
Cube

Or if you get err

Published cube XXXXX (size xxxxx) cannot be loaded because total cube memory usage reaches maximum setting (xxxM). Increase the memory available for cubes for project XXXXX in order to load this cube. Error in Process method of Component: CubeServer, XXXXX, Job xxxxx, Error Code= -2147072551

then change
platform_analytics

Cube can’t be created because there’s not too much disk space

Chek disk space you need at least 10gb of free space to refresh cube.

KAFKA > PLATFORM > POSTGRE

If you have problem that ‘Apache Kafka’ service is not running then the error is most likely here
Chek ‘C:\Program Files (x86)\MicroStrategy\Platform Analytics\conf\PAConsumerConfig.yaml’
if configuration of ‘pgWarehouseDbConnection’ is correct
you can try encrypting password with
‘C:\Program Files (x86)\MicroStrategy\Platform Analytics\bin\platform-analytics-encryptor.bat’ (run cmd first in administrator mode)
and chek if it is the same

INTELIGENCE > KAFKA

Data not send to kafka

If you get error in kafka logs

ERROR:(Local: Broker transport failure): inteligence_server:9092/0: Connect to ipv6#[<font color='red'>xxx</font>]:9092 failed: Unknown error (after 2013ms in state CONNECT)
2024-04-16 10:15:25.694+01:00[HOST:inteligence_server][PID:2932][THR:7080]Rdkafka event

Then inteligence server is not sending data to kafka. In ‘Command manager’ run

 LIST ALL PROPERTIES FOR SERVER CONFIGURATION;

and chek if bootstrap.servers:
have server with kafka.
If not run

 ALTER SERVER CONFIGURATION ENABLEMESSAGINGSERVICES TRUE CONFIGUREMESSAGINGSERVICES "bootstrap.servers:Server_With_Kafka:9092/BATCH.num.MESSAGES:5000/queue.buffering.max.ms:2000/MESSAGE.max.BYTES:1000000";

Project not collecting data

In ‘Command manager’ run

 LIST ALL PROPERTIES FOR PASTATISTICS IN PROJECT "your_project_name";

BassicStatistics
If project dosen’t have ‘Basic Statistics’ set to ‘True’. Then run

 ALTER PASTATISTICS BASICSTATS ENABLED DETAILEDREPJOBS FALSE DETAILEDDOCJOBS FALSE JOBSQL FALSE COLUMNSTABLES FALSE IN PROJECT "your_project_name";

Hint ‘LIST ALL PROJECTS;’ retuns names for all projects

If kafka shutdowns constatntly and you dont care for missing data

Stop all 4 services
Then you can delete evrything in
C:\Program Files (x86)\MicroStrategy\Messaging Services\tmp\kafka-logs
C:\Program Files (x86)\MicroStrategy\Messaging Services\tmp\zookeeper\version-2

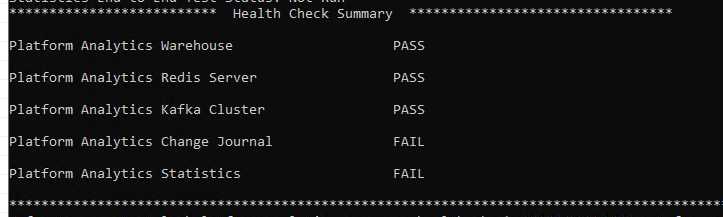

You can also chek if data is loded by running

‘C:\Program Files (x86)\MicroStrategy\Platform Analytics\bin\platform-analytics-health-check.bat’ (first run cmd as admin)
insert id for project and id for report that you will run and change description for it.

Last chek

After everything starts working run ‘Licence Manager’ and go to > Audit > Intelligence > Login (admin user and pass)’ and press ‘AUDIT’
In ‘Developer’ go to Administration > Configuration Managers > Events > (and triger) Load Metadata Object Telemetry

If platform survives loding this 2 than evrything will work.

Database for ‘platform_analytics_wh’ dosen’t exist

For this you will have to log in as POSTGRES user (find tutorial)
and run


CREATE USER mstr_pa WITH ENCRYPTED PASSWORD 'ricola' NOSUPERUSER CREATEDB;

CREATE DATABASE platform_analytics_wh
  WITH
  OWNER = mstr_pa
  ENCODING = 'UTF8'
  CONNECTION LIMIT = -1;

/*if previus gives you truble run this*/
--CREATE DATABASE platform_analytics_wh
--  WITH
--  OWNER = mstr_pa
--  ENCODING = 'UTF8'
--  TEMPLATE = template0
--  CONNECTION LIMIT = -1;

ALTER ROLE mstr_pa SET search_path TO platform_analytics_wh

chek if
‘C:\Program Files (x86)\MicroStrategy\Platform Analytics\conf\PAConsumerConfig.yaml’ is correct
then run
‘C:\Program Files (x86)\MicroStrategy\Platform Analytics\bin\platform-analytics-consumer.bat’ (first run cmd as admin)
run it like


platform-analytics-custom-install.bat -o

if error chek
‘C:\Program Files (x86)\MicroStrategy\Platform Analytics\conf\PAConsumerConfig.yaml’
especially password that you can encrypt in
‘C:\Program Files (x86)\MicroStrategy\Platform Analytics\bin\platform-analytics-encryptor.bat’(first run cmd as admin)

Extra

Change for how long data is stored

Edit ‘C:\Program Files (x86)\MicroStrategy\Platform Analytics\conf\PAConsumerConfig.yaml’
Change
viewCutoffRangeInDays: 666
currentFactDataKeepDays: 999
First one shows how many days is loaded to cubes.
Second one shows how long data is kept in database before deletion.

Not all user names are showing after refreshing cube

In ‘Developer’ go to Administration > Configuration Managers > Events > (and triger) Load Metadata Object Telemetry
Wait few minutes and refresh cubes.

Move data to another Repository

repository_administration

Configuration

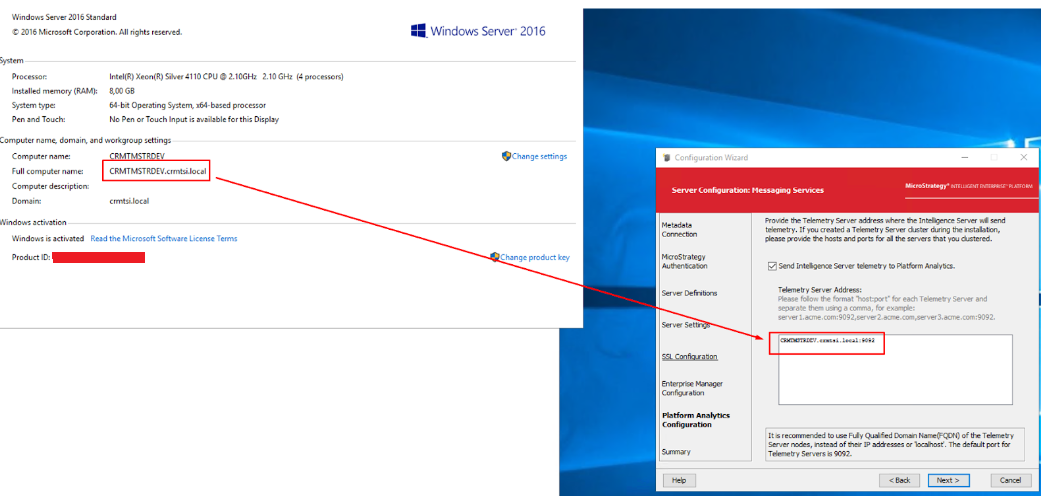

During configuration set ‘Platform Analytics Configuration’ Platform_Conection
it shud be full computer name and :9092

Error Dossies show same hour (12 AM) in datetime columns

Change VLDB setting

ODBC_12AM

KB485003
