MicroStrategy - Tables and column used
12 Aug 2022
Dificulty ★☆☆☆☆
Intro
Following the idea from mstr-metadata-tables we can use this logic to create documentation how each attribute/fact is connected to which table/column.
Understanding difrent types
Since we will be looking into DSSMDOBJINFO table it is good to know what certen object type mean.
SELECT o.project_id,
CASE o.object_type
WHEN 1 THEN 'filter (1) '
WHEN 2 THEN 'template (2)'
WHEN 3 THEN 'report (3)'
WHEN 4 THEN 'metric (4)'
WHEN 6 THEN 'autostyle (6)'
WHEN 8 THEN 'folder (8)'
WHEN 10 THEN 'prompt (10)'
WHEN 11 THEN 'function (11)'
WHEN 12 THEN 'attribute (12)'
WHEN 13 THEN 'fact (13)'
WHEN 14 THEN 'hierarchy (14)'
WHEN 15 THEN 'table (15)'
WHEN 21 THEN 'attribute id (21)'
WHEN 22 THEN 'schema (22)'
WHEN 24 THEN 'warehouse catalog (24)'
WHEN 25 THEN 'warehouse catalog definition (25)'
WHEN 26 THEN 'table column (26)'
WHEN 28 THEN 'property sets (28)'
WHEN 34 THEN 'users/groups (34)'
WHEN 39 THEN 'search (39)'
WHEN 42 THEN 'package (42)'
WHEN 47 THEN 'consolidations (47)'
WHEN 52 THEN 'link (52)'
WHEN 53 THEN 'table (53)'
WHEN 56 THEN 'drill map (56)'
WHEN 58 THEN 'security filter (58)'
ELSE 'OTHERS'
END
AS tipo,
o.object_name,
o.object_id
FROM dssmdobjinfo o
ORDER BY tipo
Atributes
For attributes the sql is pretty straight forward since we only need to find connection between attributes, columns and tables.
WITH parameters AS (
SELECT '9229CB8F-4DFA-4925-9CD1-0CFF9E9E11A5' AS PROJECT_ID
)
, atributes AS (
SELECT
PROJECT_ID
, OBJECT_ID AS ATT_GUID
, OBJECT_TYPE AS ATT_TYPE_ID
, OBJECT_NAME AS ATT_NAME
, CREATE_TIME AS ATT_CREATE_TIME
, MOD_TIME AS ATT_MOD_TIME
FROM DSSMDOBJINFO
WHERE
OBJECT_TYPE IN (12) /*atributes*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND OBJECT_STATE = 0
)
, tables AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS TABLE_GUID
, i.OBJECT_NAME AS TABLE_NAME
, i.CREATE_TIME AS TABLE_CREATE_TIME
, i.MOD_TIME AS TABLE_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (53) /*tables*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND OBJECT_STATE = 0
)
, columns AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS COLUMN_GUID
, i.OBJECT_NAME AS COLUMN_NAME
, i.CREATE_TIME AS COLUMN_CREATE_TIME
, i.MOD_TIME AS COLUMN_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND OBJECT_STATE = 0
)
, rltd_TableColumn AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS TABLE_GUID
, DEPN_OBJID AS COLUMN_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (53) /*tables*/
AND DEPNOBJ_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_AttributeColumn AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS ATT_GUID
, DEPN_OBJID AS COLUMN_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (12) /*atributes*/
AND DEPNOBJ_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
SELECT DISTINCT
att.PROJECT_ID
, att.ATT_GUID
-- , tab.TABLE_GUID
-- , col.COLUMN_GUID
, att.ATT_NAME
, tab.TABLE_NAME
-- , tab.TABLE_CREATE_TIME
-- , tab.TABLE_MOD_TIME
, col.COLUMN_NAME
-- , col.COLUMN_CREATE_TIME
-- , col.COLUMN_MOD_TIME
FROM atributes att
LEFT JOIN rltd_AttributeColumn rAC
ON att.PROJECT_ID = rAC.PROJECT_ID
AND att.ATT_GUID = rAC.ATT_GUID
LEFT JOIN columns col
ON rAC.PROJECT_ID = col.PROJECT_ID
AND rAC.COLUMN_GUID = col.COLUMN_GUID
LEFT JOIN rltd_TableColumn rTC
ON col.PROJECT_ID = rTC.PROJECT_ID
AND col.COLUMN_GUID = rTC.COLUMN_GUID
LEFT JOIN tables tab
ON rTC.PROJECT_ID = tab.PROJECT_ID
AND rTC.TABLE_GUID = tab.TABLE_GUID
WHERE TABLE_NAME IS NOT NULL AND len(tab.TABLE_NAME) > 1
ORDER by ATT_NAME
Metrics
For metrics things get complicated since we need connection between metric, fact, column and table.
------ ReportStatistics ------
WITH parameters AS (
SELECT '9229CB8F-4DFA-4925-9CD1-0CFF9E9E11A5' AS PROJECT_ID
)
, metric AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS METRIC_GUID
--, i.OBJECT_TYPE AS ATT_TYPE_ID
, i.OBJECT_NAME AS METRIC_NAME
, i.CREATE_TIME AS METRIC_CREATE_TIME
, i.MOD_TIME AS METRIC_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (4) /*metric*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, fact AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS FACT_GUID
--, i.OBJECT_TYPE AS ATT_TYPE_ID
, i.OBJECT_NAME AS FACT_NAME
, i.CREATE_TIME AS FACT_CREATE_TIME
, i.MOD_TIME AS FACT_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (13) /*fact*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, tables AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS TABLE_GUID
--, i.OBJECT_TYPE AS TABLE_TYPE_ID
, i.OBJECT_NAME AS TABLE_NAME
, i.CREATE_TIME AS TABLE_CREATE_TIME
, i.MOD_TIME AS TABLE_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (53) /*table*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, columns AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS COLUMN_GUID
--, i.OBJECT_TYPE AS COLUMN_TYPE_ID
, i.OBJECT_NAME AS COLUMN_NAME
, i.CREATE_TIME AS COLUMN_CREATE_TIME
, i.MOD_TIME AS COLUMN_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (26) /*column*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, rltd_TableColumn AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS TABLE_GUID
, DEPN_OBJID AS COLUMN_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (53) /*table*/
AND DEPNOBJ_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_Metric_fact AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS METRIC_GUID
, DEPN_OBJID AS FACT_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (4) /*metric*/
AND DEPNOBJ_TYPE IN (13) /*fact*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_Fact_To_Table AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS FACT_GUID
, DEPN_OBJID AS COLUMN_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (13) /*fact*/
AND DEPNOBJ_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
SELECT distinct
met.PROJECT_ID
, rTC.TABLE_GUID
, met.METRIC_GUID
, met.FACT_GUID
, rTC.COLUMN_GUID
, m.METRIC_NAME
, rAC.FACT_NAME
, col.COLUMN_NAME AS DB_Column
, tab.TABLE_NAME AS DB_Table
FROM rltd_Metric_fact met
LEFT JOIN fact rAC
ON met.PROJECT_ID = rAC.PROJECT_ID
AND met.FACT_GUID = rAC.FACT_GUID
LEFT JOIN rltd_Fact_To_Table FTF
ON met.PROJECT_ID = FTF.PROJECT_ID
AND met.FACT_GUID = ftf.FACT_GUID
LEFT JOIN columns col
ON rAC.PROJECT_ID = col.PROJECT_ID
AND FTF.COLUMN_GUID = col.COLUMN_GUID
LEFT JOIN rltd_TableColumn rTC
ON col.PROJECT_ID = rTC.PROJECT_ID
AND col.COLUMN_GUID = rTC.COLUMN_GUID
LEFT JOIN tables tab
ON rTC.PROJECT_ID = tab.PROJECT_ID
AND rTC.TABLE_GUID = tab.TABLE_GUID
LEFT JOIN metric m
ON met.PROJECT_ID = m.PROJECT_ID
AND met.METRIC_GUID = m.METRIC_GUID
WHERE rTC.column_guid is not null

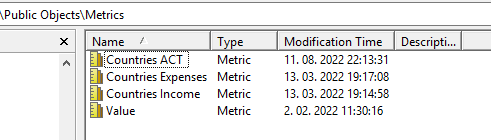

AND tab.TABLE_GUID is not nullSo if we have

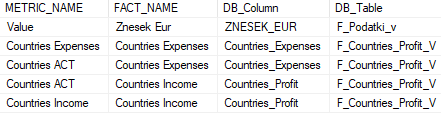

This will give as only metrics that are directly connected to fact.

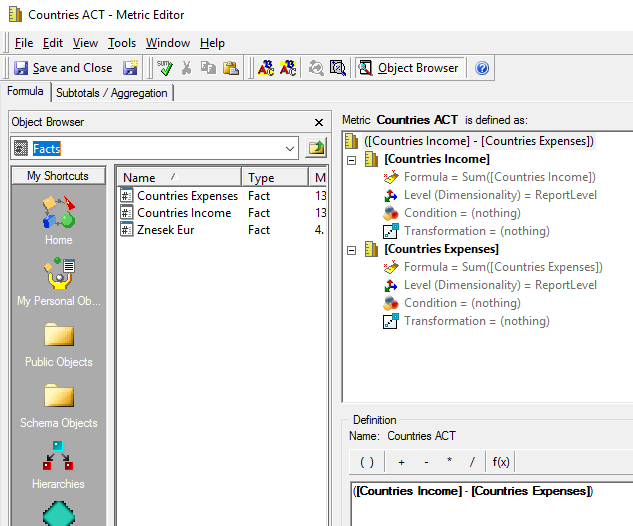

Metrics containing metrics
Since we use metrics inside metrics we need to include them to.
------ ReportStatistics ------
WITH parameters AS (
SELECT '9229CB8F-4DFA-4925-9CD1-0CFF9E9E11A5' AS PROJECT_ID
)
, metric AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS METRIC_GUID
--, i.OBJECT_TYPE AS ATT_TYPE_ID
, i.OBJECT_NAME AS METRIC_NAME
, i.CREATE_TIME AS METRIC_CREATE_TIME
, i.MOD_TIME AS METRIC_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (4) /*metric*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, fact AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS FACT_GUID
--, i.OBJECT_TYPE AS ATT_TYPE_ID
, i.OBJECT_NAME AS FACT_NAME
, i.CREATE_TIME AS FACT_CREATE_TIME
, i.MOD_TIME AS FACT_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (13) /*fact*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, tables AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS TABLE_GUID
--, i.OBJECT_TYPE AS TABLE_TYPE_ID
, i.OBJECT_NAME AS TABLE_NAME
, i.CREATE_TIME AS TABLE_CREATE_TIME
, i.MOD_TIME AS TABLE_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (53) /*table*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, columns AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS COLUMN_GUID
--, i.OBJECT_TYPE AS COLUMN_TYPE_ID
, i.OBJECT_NAME AS COLUMN_NAME
, i.CREATE_TIME AS COLUMN_CREATE_TIME
, i.MOD_TIME AS COLUMN_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (26) /*column*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, rltd_TableColumn AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS TABLE_GUID
, DEPN_OBJID AS COLUMN_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (53) /*table*/
AND DEPNOBJ_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_Metric_fact AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS METRIC_GUID
, DEPN_OBJID AS FACT_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (4) /*metric*/
AND DEPNOBJ_TYPE IN (13) /*fact*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_Fact_To_Table AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS FACT_GUID
, DEPN_OBJID AS COLUMN_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (13) /*fact*/
AND DEPNOBJ_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_Metric_to_Metric AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS METRIC_GUID
, DEPN_OBJID AS METRIC_GUID_DOWN
FROM DSSMDOBJDEPN a
WHERE
OBJECT_TYPE IN (4,13)
AND DEPNOBJ_TYPE IN (4,13)
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, metric_to_metric_conection as (
SELECT
M.PROJECT_ID
, M.METRIC_GUID
, m.METRIC_GUID_DOWN as m2
, M2.METRIC_GUID_DOWN as m3
, M3.METRIC_GUID_DOWN as m4
FROM rltd_Metric_to_Metric M
left join rltd_Metric_to_Metric M2
ON M.METRIC_GUID_DOWN = M2.METRIC_GUID
AND M.PROJECT_ID = M2.PROJECT_ID
left join rltd_Metric_to_Metric M3
ON M2.METRIC_GUID_DOWN = M3.METRIC_GUID
AND M2.PROJECT_ID = M3.PROJECT_ID
)
, metrtics_and_final_facts as (
select PROJECT_ID, METRIC_GUID, m2 as FACT_GUID from metric_to_metric_conection
where (
m2 in (select FACT_GUID from fact))
union
select PROJECT_ID, METRIC_GUID, m3 as FACT_GUID from metric_to_metric_conection
where (
m3 in (select FACT_GUID from fact))
union
select PROJECT_ID, METRIC_GUID, m4 as FACT_GUID from metric_to_metric_conection
where (
m4 in (select FACT_GUID from fact))
)
SELECT distinct
met.PROJECT_ID
, rTC.TABLE_GUID
, met.METRIC_GUID
, met.FACT_GUID
, rTC.COLUMN_GUID
, m.METRIC_NAME
, rAC.FACT_NAME
, col.COLUMN_NAME AS DB_Column
, tab.TABLE_NAME AS DB_Table
FROM metrtics_and_final_facts met
LEFT JOIN fact rAC
ON met.PROJECT_ID = rAC.PROJECT_ID
AND met.FACT_GUID = rAC.FACT_GUID
LEFT JOIN rltd_Fact_To_Table FTF
ON met.PROJECT_ID = FTF.PROJECT_ID
AND met.FACT_GUID = ftf.FACT_GUID
LEFT JOIN columns col
ON rAC.PROJECT_ID = col.PROJECT_ID
AND FTF.COLUMN_GUID = col.COLUMN_GUID
LEFT JOIN rltd_TableColumn rTC
ON col.PROJECT_ID = rTC.PROJECT_ID
AND col.COLUMN_GUID = rTC.COLUMN_GUID
LEFT JOIN tables tab
ON rTC.PROJECT_ID = tab.PROJECT_ID
AND rTC.TABLE_GUID = tab.TABLE_GUID
LEFT JOIN metric m
ON met.PROJECT_ID = m.PROJECT_ID
AND met.METRIC_GUID = m.METRIC_GUID
WHERE rTC.column_guid is not null
AND tab.TABLE_GUID is not nullIn this we see case metric ‘Countries ACT’ is combined from 2 different facts
Atributes used in reports
If you want to know which report uses which attribute you can do it like this
WITH parameters AS (
SELECT '9229CB8F-4DFA-4925-9CD1-0CFF9E9E11A5' AS PROJECT_ID
)
, atributes AS (
SELECT
PROJECT_ID
, OBJECT_ID AS ATT_GUID
, OBJECT_TYPE AS ATT_TYPE_ID
, OBJECT_NAME AS ATT_NAME
, CREATE_TIME AS ATT_CREATE_TIME
, MOD_TIME AS ATT_MOD_TIME
FROM DSSMDOBJINFO
WHERE
OBJECT_TYPE IN (12) /*atributes*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND OBJECT_STATE = 0
)
, tables AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS TABLE_GUID
, i.OBJECT_NAME AS TABLE_NAME
, i.CREATE_TIME AS TABLE_CREATE_TIME
, i.MOD_TIME AS TABLE_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (53) /*tables*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND OBJECT_STATE = 0
)
, columns AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS COLUMN_GUID
, i.OBJECT_NAME AS COLUMN_NAME
, i.CREATE_TIME AS COLUMN_CREATE_TIME
, i.MOD_TIME AS COLUMN_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND OBJECT_STATE = 0
)
, rltd_TableColumn AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS TABLE_GUID
, DEPN_OBJID AS COLUMN_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (53) /*tables*/
AND DEPNOBJ_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_AttributeColumn AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS ATT_GUID
, DEPN_OBJID AS COLUMN_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (12) /*atributes*/
AND DEPNOBJ_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_ReportAtribute AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS REP_GUID
, DEPN_OBJID AS ATT_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (3) /*report*/
AND DEPNOBJ_TYPE IN (12) /*atribute*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, reports AS (
SELECT
PROJECT_ID
, OBJECT_ID AS REP_GUID
, OBJECT_TYPE AS REP_TYPE_ID
, OBJECT_NAME AS REP_NAME
, CREATE_TIME AS REP_CREATE_TIME
, MOD_TIME AS REP_MOD_TIME
FROM DSSMDOBJINFO
WHERE
OBJECT_TYPE IN (3) /*reports*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND OBJECT_STATE = 0
)
SELECT DISTINCT
att.PROJECT_ID
, rep.REP_GUID
, att.ATT_GUID
-- , tab.TABLE_GUID
-- , col.COLUMN_GUID
, rep.REP_NAME
, att.ATT_NAME
, tab.TABLE_NAME
-- , tab.TABLE_CREATE_TIME
-- , tab.TABLE_MOD_TIME
, col.COLUMN_NAME
-- , col.COLUMN_CREATE_TIME
-- , col.COLUMN_MOD_TIME
from rltd_ReportAtribute rRA
LEFT JOIN atributes att
ON rRA.PROJECT_ID = att.PROJECT_ID
AND rRA.ATT_GUID = att.ATT_GUID
LEFT JOIN rltd_AttributeColumn rAC
ON att.PROJECT_ID = rAC.PROJECT_ID
AND att.ATT_GUID = rAC.ATT_GUID
LEFT JOIN columns col
ON rAC.PROJECT_ID = col.PROJECT_ID
AND rAC.COLUMN_GUID = col.COLUMN_GUID
LEFT JOIN rltd_TableColumn rTC
ON col.PROJECT_ID = rTC.PROJECT_ID
AND col.COLUMN_GUID = rTC.COLUMN_GUID
LEFT JOIN tables tab
ON rTC.PROJECT_ID = tab.PROJECT_ID
AND rTC.TABLE_GUID = tab.TABLE_GUID
LEFT JOIN reports rep
ON rRA.PROJECT_ID = rep.PROJECT_ID
AND rRA.REP_GUID = rep.REP_GUID
WHERE TABLE_NAME IS NOT NULL AND len(tab.TABLE_NAME) > 1
ORDER by REP_NAME, ATT_NAMEMetrics used in reports
And same for metrics
------ ReportStatistics ------
WITH parameters AS (
SELECT '9229CB8F-4DFA-4925-9CD1-0CFF9E9E11A5' AS PROJECT_ID
)
, metric AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS METRIC_GUID
--, i.OBJECT_TYPE AS ATT_TYPE_ID
, i.OBJECT_NAME AS METRIC_NAME
, i.CREATE_TIME AS METRIC_CREATE_TIME
, i.MOD_TIME AS METRIC_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (4) /*metric*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, fact AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS FACT_GUID
--, i.OBJECT_TYPE AS ATT_TYPE_ID
, i.OBJECT_NAME AS FACT_NAME
, i.CREATE_TIME AS FACT_CREATE_TIME
, i.MOD_TIME AS FACT_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (13) /*fact*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, tables AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS TABLE_GUID
--, i.OBJECT_TYPE AS TABLE_TYPE_ID
, i.OBJECT_NAME AS TABLE_NAME
, i.CREATE_TIME AS TABLE_CREATE_TIME
, i.MOD_TIME AS TABLE_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (53) /*table*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, columns AS (
SELECT
i.PROJECT_ID
, i.OBJECT_ID AS COLUMN_GUID
--, i.OBJECT_TYPE AS COLUMN_TYPE_ID
, i.OBJECT_NAME AS COLUMN_NAME
, i.CREATE_TIME AS COLUMN_CREATE_TIME
, i.MOD_TIME AS COLUMN_MOD_TIME
FROM DSSMDOBJINFO i
WHERE
i.OBJECT_TYPE IN (26) /*column*/
AND i.PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND i.OBJECT_STATE = 0
)
, rltd_TableColumn AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS TABLE_GUID
, DEPN_OBJID AS COLUMN_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (53) /*table*/
AND DEPNOBJ_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_Metric_fact AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS METRIC_GUID
, DEPN_OBJID AS FACT_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (4) /*metric*/
AND DEPNOBJ_TYPE IN (13) /*fact*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_Fact_To_Table AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS FACT_GUID
, DEPN_OBJID AS COLUMN_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (13) /*fact*/
AND DEPNOBJ_TYPE IN (26) /*column*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, rltd_Metric_to_Metric AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS METRIC_GUID
, DEPN_OBJID AS METRIC_GUID_DOWN
FROM DSSMDOBJDEPN a
WHERE
OBJECT_TYPE IN (4,13)
AND DEPNOBJ_TYPE IN (4,13)
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, metric_to_metric_conection as (
SELECT
M.PROJECT_ID
, M.METRIC_GUID
, m.METRIC_GUID_DOWN as m2
, M2.METRIC_GUID_DOWN as m3
, M3.METRIC_GUID_DOWN as m4
FROM rltd_Metric_to_Metric M
left join rltd_Metric_to_Metric M2
ON M.METRIC_GUID_DOWN = M2.METRIC_GUID
AND M.PROJECT_ID = M2.PROJECT_ID
left join rltd_Metric_to_Metric M3
ON M2.METRIC_GUID_DOWN = M3.METRIC_GUID
AND M2.PROJECT_ID = M3.PROJECT_ID
)
, metrtics_and_final_facts as (
select PROJECT_ID, METRIC_GUID, m2 as FACT_GUID from metric_to_metric_conection
where (
m2 in (select FACT_GUID from fact))
union
select PROJECT_ID, METRIC_GUID, m3 as FACT_GUID from metric_to_metric_conection
where (
m3 in (select FACT_GUID from fact))
union
select PROJECT_ID, METRIC_GUID, m4 as FACT_GUID from metric_to_metric_conection
where (
m4 in (select FACT_GUID from fact))
)
, rltd_ReportMetric AS (
SELECT
PROJECT_ID AS PROJECT_ID
, OBJECT_ID AS REP_GUID
, DEPN_OBJID AS METRIC_GUID
FROM DSSMDOBJDEPN
WHERE
OBJECT_TYPE IN (3) /*report*/
AND DEPNOBJ_TYPE IN (4) /*metric*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
)
, reports AS (
SELECT
PROJECT_ID
, OBJECT_ID AS REP_GUID
, OBJECT_TYPE AS REP_TYPE_ID
, OBJECT_NAME AS REP_NAME
, CREATE_TIME AS REP_CREATE_TIME
, MOD_TIME AS REP_MOD_TIME
FROM DSSMDOBJINFO
WHERE
OBJECT_TYPE IN (3) /*reports*/
AND PROJECT_ID IN (SELECT PROJECT_ID FROM parameters)
AND OBJECT_STATE = 0
)
SELECT distinct
met.PROJECT_ID
, rRM.REP_GUID
, rTC.TABLE_GUID
, met.METRIC_GUID
, met.FACT_GUID
, rTC.COLUMN_GUID
, rep.REP_NAME
, m.METRIC_NAME
, rAC.FACT_NAME
, col.COLUMN_NAME AS DB_Column
, tab.TABLE_NAME AS DB_Table
FROM rltd_ReportMetric rRM
LEFT JOIN metrtics_and_final_facts met
ON rRM.PROJECT_ID = met.PROJECT_ID
AND rRM.METRIC_GUID = met.METRIC_GUID
LEFT JOIN fact rAC
ON met.PROJECT_ID = rAC.PROJECT_ID
AND met.FACT_GUID = rAC.FACT_GUID
LEFT JOIN rltd_Fact_To_Table FTF
ON met.PROJECT_ID = FTF.PROJECT_ID
AND met.FACT_GUID = ftf.FACT_GUID
LEFT JOIN columns col
ON rAC.PROJECT_ID = col.PROJECT_ID
AND FTF.COLUMN_GUID = col.COLUMN_GUID
LEFT JOIN rltd_TableColumn rTC
ON col.PROJECT_ID = rTC.PROJECT_ID
AND col.COLUMN_GUID = rTC.COLUMN_GUID
LEFT JOIN tables tab
ON rTC.PROJECT_ID = tab.PROJECT_ID
AND rTC.TABLE_GUID = tab.TABLE_GUID
LEFT JOIN metric m
ON met.PROJECT_ID = m.PROJECT_ID
AND met.METRIC_GUID = m.METRIC_GUID
LEFT JOIN reports rep
ON rRM.PROJECT_ID = rep.PROJECT_ID
AND rRM.REP_GUID = rep.REP_GUID
WHERE rTC.column_guid is not null
AND tab.TABLE_GUID is not null
